DHE series, constant temperature instant electric water heater, never waste energy. Wireless remote control devices can be added..
Feature:
More Function:
- 18, 21, 24 kW (adjustable), 18 kW, 27kW
- 9.2-13.8 l/min (depending on model)
- The economy monitor displays cost savings and CO2 reductions
- Electronic safety system with air detection
- Bare wire heating system with pressure-tested copper casing
- Hoseproof to IP25
- 2 years Warranty
- Profi-Rapid® for a quick installation
- Quick temperature selection with memory key
- Assured and accurate delivery of the required temperature from 20℃-60℃
- The display show the current water and energy consumption
- Saves up to 30 % energy compared to cylinder systems
- Wired or wireless comfort remote control (option)
*Compared hydraulic instantaneous water heaters; subject to pattern of use.

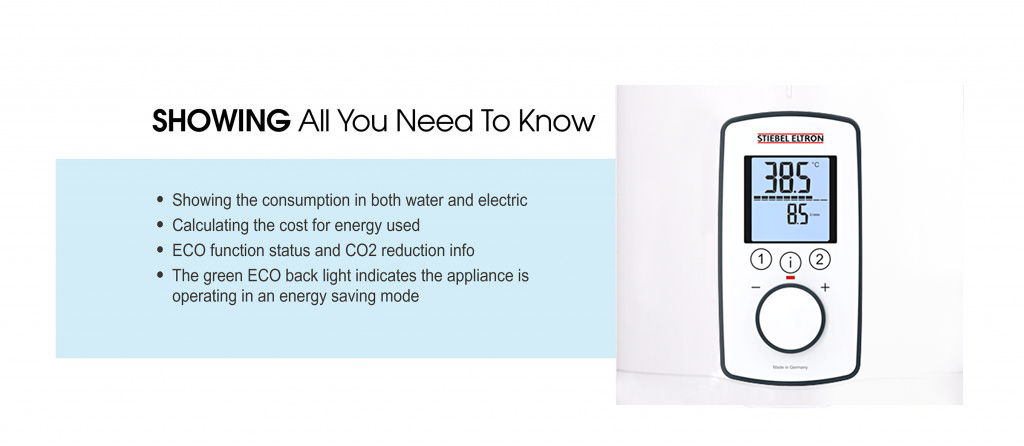

Multifunction LCD display :
Single or Multiple Point outlet applications:

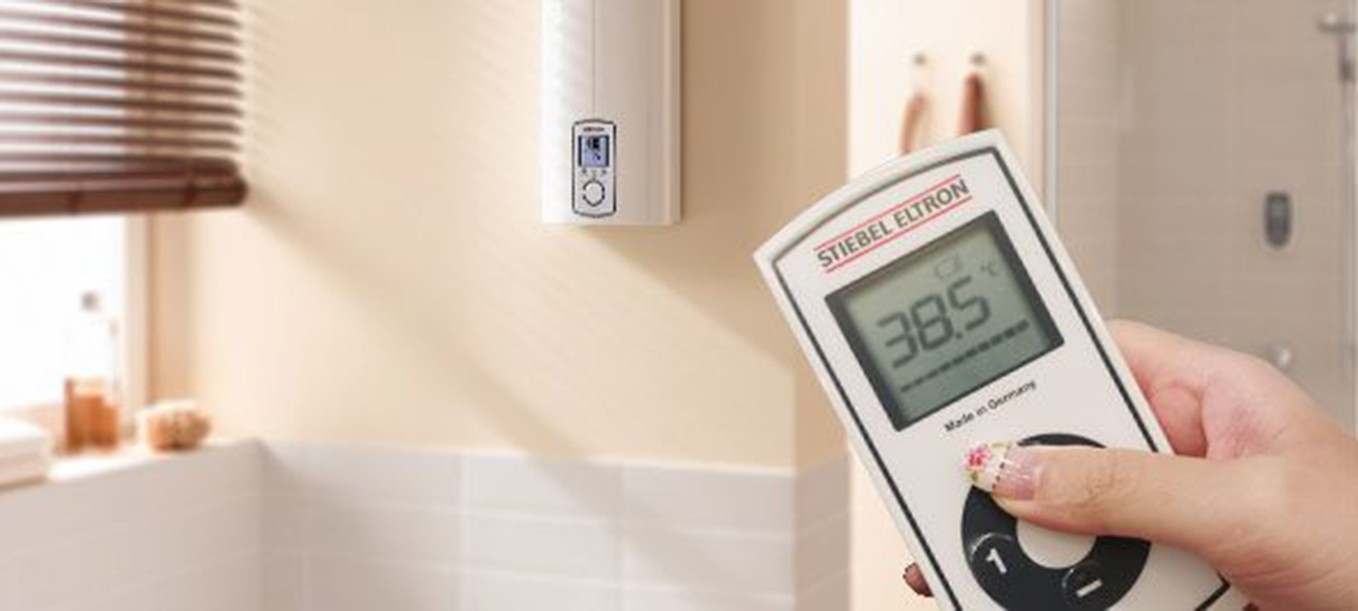

Remote Control (optional)
DHE series is compatible with wireless remote control, easier access and increasing the flexibility while using.
Specification:
| Model | DHE 18/21/24 | DHE 27 |
|
Power Rating(400V)kW (380V)kW |
18/ 21/ 24 16.2/ 19/ 21.7 |
27 24.4 |
| Size(H/W/D)mm | 478 x 225 x 116 | |
| Temp. Adjustment | 20℃-60℃ | |
| Working Pressure | 10 Bar | |
| Min. Flow rate | 2.5L | |
| Protection level | IP25 | |
| Pipe size | 15mm(G1/2″) | |
| Weight | 3.1kg | |
| Control Unit | Fully Electrionic Control | |
| Outlet applications | Single or Multiple | |
| Multifunction LCD display | ||
| Childproof setting | 20℃-60℃ | |
| Automatic water flow rate | ||
| Wellness shower programs | ||
| ECO-energy and water saving function | ||
| Programmable temperature | ||
| Bare wire heating system | ||
| Elect. air detetion system | ||
| Temperature limit | ||
| Elect. Flow rate control | ||
| Solar operation (preheated water) | ||
